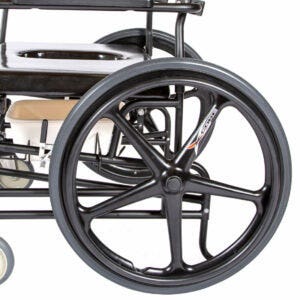

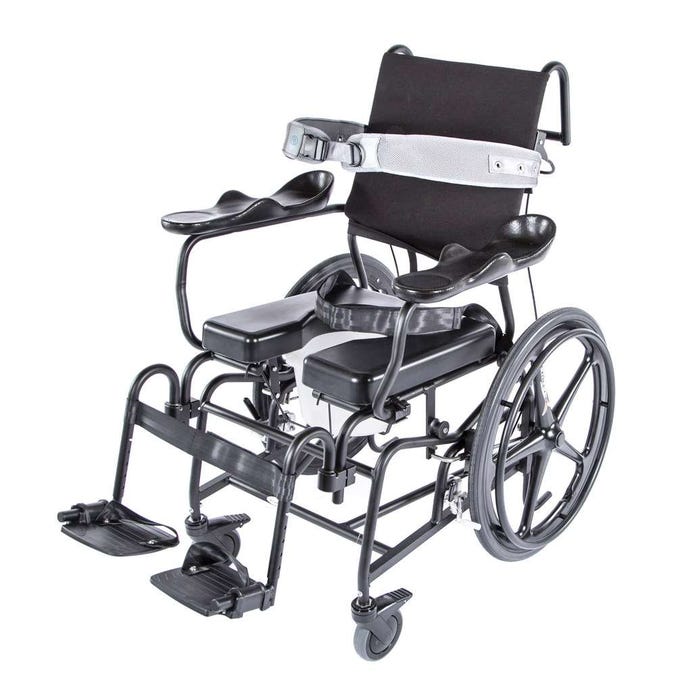

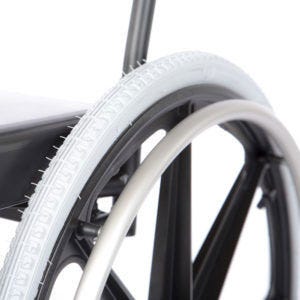

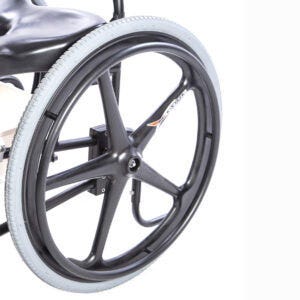

ActiveAid 285 Rehab Shower/Commode Chair-Tilt is a tilt-in-space shower/commode chair that operates with assistance from gravity. The ActiveAid 285 Tilt is a versatile chair for the home or rehab setting, with frame widths ranging from 16 to 22 inches and the option of 4 casters or 24 inch rear wheels. Together, the various parts of ActiveAid 285 offer support, comfort, pressure relief, and additional tilt-in-space advantages. The rehab shower commode chair comes in seven-seat sizes and four frame sizes.
Product Highlights
- Tilt Adjustment
- Stainless Steel Frame
- Frame width : 16" to 22"
- Weight Capacity - 350 lbs.
- Several New Seat Options Available
- Gives support and comfort to the user

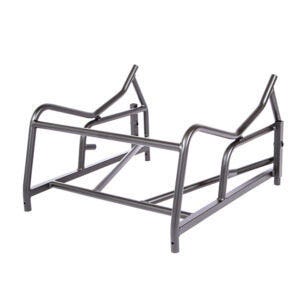

- 18" W x 18" D Stainless Steel Frame (P13636)
| Seat Width | 16" | 18" | 20" | 22" |
| Weight Capacity | 350 lbs. | 350 lbs. | 350 lbs. | 350 lbs. |
| Width between Arm Rests Flip-Up with Pad | 18.75" | 20.75" | 22.75" | 24.75" |
| Width between Arm Rests -Arm Troughs | 16.75" | 18.75" | 20.75" | 22.75" |
| Width between Arm Rests -Height Adjustable | 16.25" | 18.25" | 20.25" | 22.25" |
| Seat Depth | 18" | 18" | 18" | 18" |
| Seat Height from Floor to Top of Seat | Front to Back 24" Wheels - 24.25" - 22" | |||

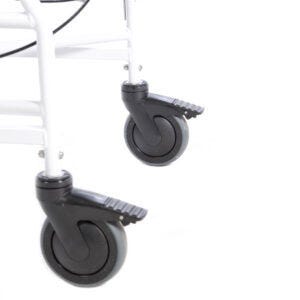

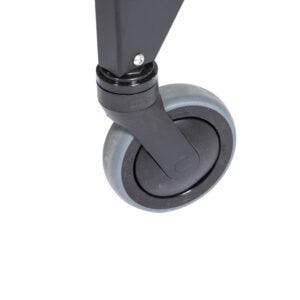

| 5" Rear Casters - 24.25" - 22.75" | ||||

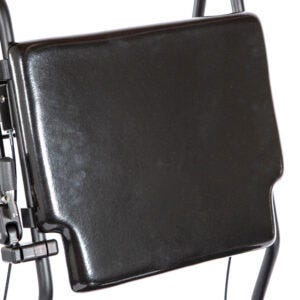

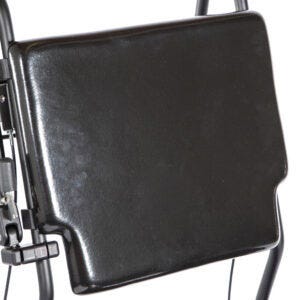

| Usable Seat Depth w/Solid Back | 16" | 16" | 16" | 16" |

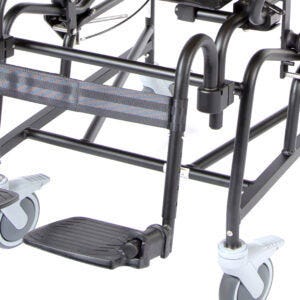

| Leg Rest Range - Gooseneck | 16.5" - 20.5" | 16.5" - 20.5" | 16.5" - 20.5" | 16.5" - 20.5" |
| Leg Rest Range - Gooseneck w/ Padded Footplate | 15.25" - 19.25" | 15.25" - 19.25" | 15.25" - 19.25" | 15.25" - 19.25" |

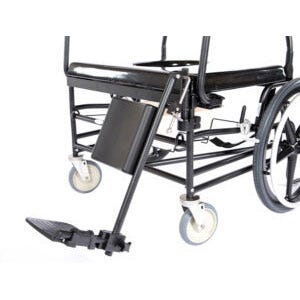

| Leg Rest Range - Elevating - Up | 19" - 26" | 19" - 26" | 19" - 26" | 19" - 26" |
| Leg Rest Range - Elevating - Up w/ Padded Footplate | 17.75" - 24.75" | 17.75" - 24.75" | 17.75" - 24.75" | 17.75" - 24.75" |
| Leg Rest Range - Elevating - Down | 18.5" - 25.5" | 18.5" - 25.5" | 18.5" - 25.5" | 18.5" - 25.5" |
| Leg Rest Range - Elevating - Down w/ Padded Footplate | 17.25" - 24.25" | 17.25" - 24.25" | 17.25" - 24.25" | 17.25" - 24.25" |
| Leg Rest Range - Padded Footplate |
Subtract 1.25" From Above Dimensions |
|||

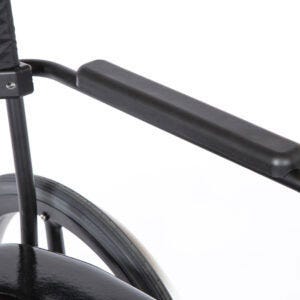

| Arm Height from Top of Seat - Flip-Up with Pad | 8" | 8" | 8" | 8" |

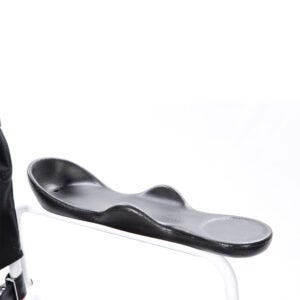

| Arm Height from Top of Seat - Arm Troughs | 8.25" | 8.25" | 8.25" | 8.25" |

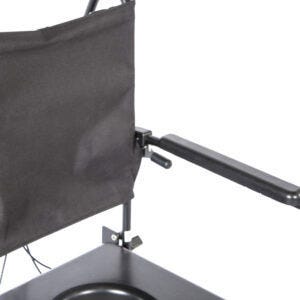

| Arm Height from Top of Seat - Height Adjustable | 7.5" - 15" | 7.5" - 15" | 7.5" - 15" | 7.5" - 15" |
| Back Height from Top of Seat | 22" | 22" | 22" | 22" |
| Gap Between Top of Seat and Bottom of Back | 4" | 4" | 4" | 4" |
| Maximum Back Slack | 4" | 4" | 4" | 4" |
| Seat to Back Angle | 14° | 14° | 14° | 14° |
| Tilt Range | 5° - 29° | 5° - 29° | 5° - 29° | 5° - 29° |
| Head Support Height Range - Top of Seat to Bottom of Cervical Support | 20.5 - 28.5 | 20.5 - 28.5 | 20.5 - 28.5 | 20.5 - 28.5 |
| Under Seat Height Clearance | 19" | 19" | 19" | 19" |
| Under Seat Width Clearance | 16.75" | 18.75" | 20.75" | 22.75" |

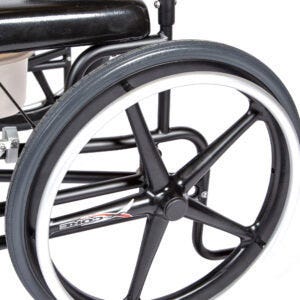

| Overall Width with 24″ Wheels | 27" | 29" | 31" | 33" |
| Overall Width with 5″ Rear Casters & Std. Arms | 23.5" | 25.5" | 27.5" | 29.5" |
| Overall Width with 5″ Rear Casters & Height Adj. Arms | 23" | 25" | 27" | 29" |
| Overall Width with 5″ Rear Casters & Arm Troughs | 27" | 29" | 31" | 33" |
| Overall Length - Min with 5″ Rear Casters | 47.25" | 47.25" | 47.25" | 47.25" |
| Overall Length - Min with 24″ Rear Wheels | 47.25" | 47.25" | 47.25" | 47.25" |
| Overall Length - Max Tilted with Headrest & Legrest Ext. | 60" | 60" | 60" | 60" |

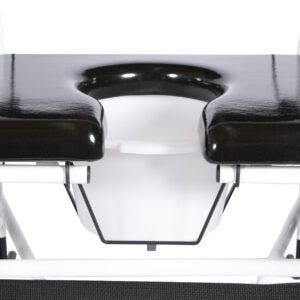

| Back of Unit to Start of Commode Opening | 19" | 19" | 19" | 19" |
| Turning Radius - Min with 5″ Rear Casters | 25" | 25" | 25" | 25" |
| Seat Used to Generate Specifications |
#60905 22″ x 18″ x 2″ Thick |
|||
