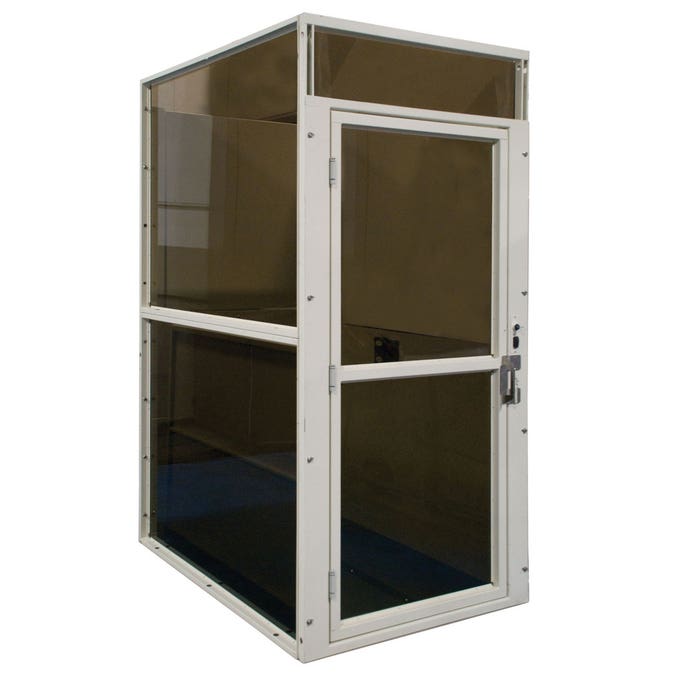

EPL Enclosed Vertical Platform Lift

By Harmar

SKU# EPL

Ships by: Wed, Nov 11th

Out of stock

 Earn 151 rewards points with this purchase

  • FREE Shipping over $50
  • Product Specialist
  • Lifetime Phone Support
  • Financing Options

Need Help?

Talk to one of our Experts!

About the EPL Enclosed Vertical Platform Lift

The EPL Enclosed Vertical Platform Lift is suitable for both indoor and outdoor use, and provides an accessibility solution for existing structures. This lift can be installed without modifying structures or existing landscaping, and does not require the amount of space that a ramp system does. When working in tight quarters where space is limited, this vertical platform lift is an ideal solution.

The EPL Enclosed Vertical Platform Lift is self-contained with powder coated steel enclosure panels. This design creates a neat appearance which is excellent when used inside a structure. When used outside, the lift’s design provides protection from the weather, making its use more enjoyable and comfortable for a wheelchair user.

This vertical platform lift features a ready-to-install design, meaning installation is simplified and you don’t need to modify the structure or its surroundings. The fixed or pit-mounted ramp is easy to enter and is stable once the lift is raised. The constant pressure paddle switch includes an emergency stop for increased safety. Able to accommodate up to a 14’ rise, the potential uses for this platform lift are limitless.

Why the EPL Enclosed Vertical Platform Lift Is Right for You

The EPL Enclosed Vertical Platform Lift is ideal for any situation where you need wheelchair accessibility but have limited space to work within. Since the lift can accommodate up to a 14’ rise, it is useful in countless situations. The enclosed design of the lift gives it a neat appearance for indoor use, and offers protection from the elements when used outdoors. Safe and easy to operate, this lift makes an excellent choice for most existing structures.

The EPL Enclosed Vertical Platform Lift ships free, and financing is available so that you can start enjoying it right away. Thanks to Med Mart’s Low Price Guarantee, you’ll know that you will be getting this lift for the lowest price anywhere.



Product Highlights
  • Constant pressure paddle switch with emergency stop (key switch optional)
  • Fixed or pit-mounted ramp provides easy entry when lift is lowered and additional stability when lift is raised
  • Enclosure can be assembled from the lift platform
  • Made in USA
Rated Load Capacity: 750 lbs
Standard Lift Height: 53"
Maximum Lift Height: 171"
Lift Speed (FPM): 10
Arrives Assembled: No
Drive System: Belt driven ball screw/90 VDC 1/3 hp motor with brake.
Optional Drive Systems: 24 VDC battery powered unit, and 2.1 roped hydraulic drive
Battery Powered Option: Yes
Constant Pressure Platform Control: Yes
Emergency Stop Platform Control: Included
Alarm Button: Included, Optional Lighted Button
Keyed Platform Control: Optional
Call-Send Controls: (2) Non-Keyed
Optional Call-Send Controls: Keyed, Wireless
Platform Type: Solid with Non-Skid Coating
Platform Size: 36" x 60" (34" Usuable)
Optional Platform Sizes: 42"x 54" (34" Usable), 42" x 60" (40" Usable)
Platform Configuration: Straight-Thru Access
Guard Panel: 42"
2-Year parts / 1-Year on outdoor units
Vertical platform lifts are custom made for each order and are non returnable. No exceptions. Cancellation: If your vertical lift has not been shipped, you can cancel for a fee of 25% (twenty five percent).
