RPL Residential Vertical Platform Lift

By Harmar

SKU# RPL-VPL / Item ID # 22143

Ships by: Mon, Nov 1st

As low as $5,795.00
Add-on Services  (0 Selected)  Select Show Less

 Earn 115 rewards points with this purchase

  • FREE Shipping over $50
  • Product Specialist
  • Lifetime Phone Support
  • Financing Options

Need Help?

Talk to one of our Experts!

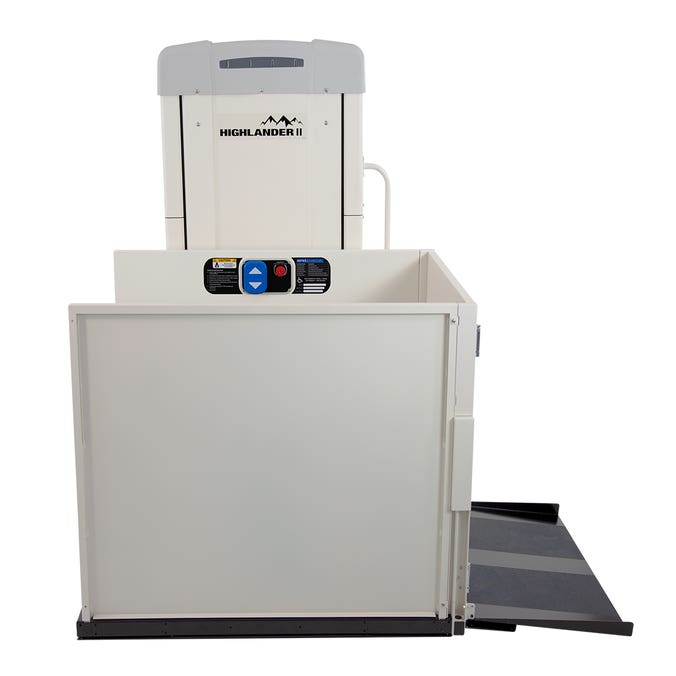

Harmar’s Residential Vertical Platform Lift (RPL) is a safe, smooth and economical solution to the barriers porches, staircases, decks and other elevation changes can create in and around a home.

Designed from the ground up to be as cost-efficient as possible, the RPL is priced to be competitive with shorter units but built to accommodate most residential applications with ease.

Available in heights from 4 to 6 feet and for use indoors and out.

Lifting height: 4'-6' (53” to 77") ;Rated load: 600lbs (272 kg) ;Drive: Belt driven Acme screw / 90 VDC ½ hp motor. Optional 24 VDC battery powered unit ;Power supply: 115 VAC – 20 Amp grounded circuit / 220 VAC (optional) ;Control circuit: 24 VAC (Low Voltage Controls) ;Platform: 36” x 48” with 36” high solid guard panels and automatic folding ramp ;Footprint: 50” x 70” ;Speed: 10 fpm ;Controls: Rocker switch w/emergency stop (key switch optional) ;Manual lowering: Provided ;Safety design standards: ASME A18.1, Section 5 – Private Residence Vertical Platform Lifts ;Safety Design: CSA B44.1 / ASME 17.5 – Elevator and Escalator Equipment ;Safety features: Safety Pan, Final limit, Acme safety nut with monitor, Non-skid surface
Manual (3.84 MB)
Warranty: 2-Year parts
Vertical platform lifts are custom made for each order and are non returnable. No exceptions. Cancellation: If your vertical lift has not been shipped, you can cancel for a fee of 25% (twenty five percent).
