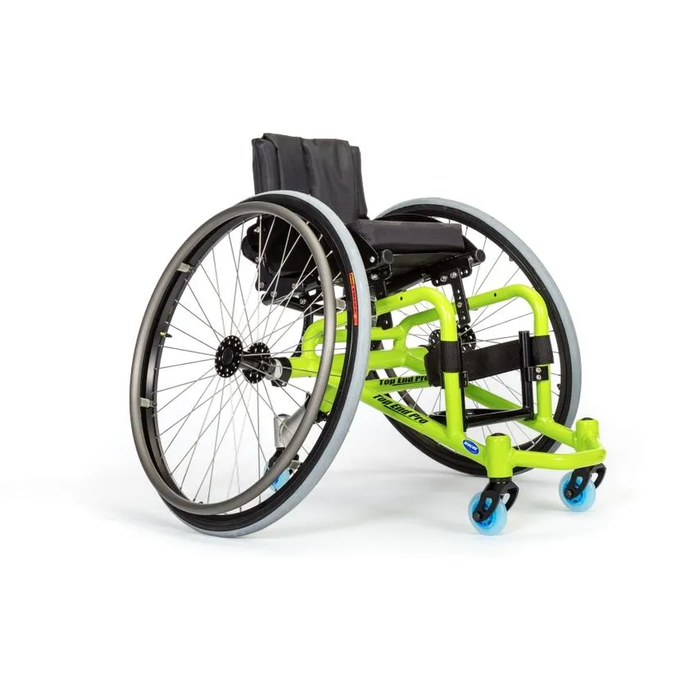

Top End Pro-2 All Sport

The Top End Pro-2 All Sport Chair is made with all sports in mind. If you want to get in the game, this chair is for you. This chair is ideal for playing basketball, tennis, softball, table tennis, badminton, floor hockey and more. The Pro-2 comes in 3 seat widths; 14" (white frame), 16" (red frame), and 18" (blue frame). This chair has lots of adjustments which make it perfect for clubs, school programs, sports teams and aspiring athletes.

What You Need to Know
The Pro-2 All Sport features a number of adjustable design elements to accommodate many athletes, such as adjustable center of gravity (2.5" -5"), adjustable seat depth (13"-17"), and adjustable axle position. The adjustable seat height allows the front seat height to go from 18" to 20"  and the rear from 15" to 20", while the back height can be adjusted from 11" - 14". The standard footrest is a clamp-on tubular recessed footrest that can be taken off and also height adjusted. The Pro-2 comes standard with an 17" wheelbase, 15° fixed camber and 25" high performance sport wheels with high pressure tires. Additional standard features include a 2" seat cushion, side guards, rear frame protector, removable single swivel anti-tip bar and positioning strap.

• The Top End Pro-2 All Sport Wheelchair is designed for the aspiring athlete who wants to play basketball, tennis, softball or any sport played on a court surface.

• It is available in 14", 16" or 18" seat widths with quick and easy adjustments.

• Ready to play right out of the box and includes 25” high performance sport wheels, high pressure tires, a seat cushion, side guards, rear frame protector, single swivel anti-tip bar and positioning strap.

*23 pounds frame weight is based upon a completely assembled chair with standard rear wheels, upholstery and footrest

**Minor Assembly Required: attaching the base and seat frames; installing the seat height adjustment brackets, anti-tip assembly, footrest, and rear wheels.

Measuring Guide (please refer to images)

Seat Depth1
Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
Back Height2
Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
Rear Seat to Floor3
Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
Hanger Angle4
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
Seat Width5
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
Wheel Camber6
Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
Front Seat to Floor7
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
Footrest Width8
Measure from the inside of each legrest tubing the distance or desired distance between legrests.
Center of Gravity9
Measure from the front of the seat back post to the center of the rear axel.
Seat to Footrest Length10
Measure from the edge of the seat upholstery to the top rear of the footrest.
Backrest Angle11
Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
