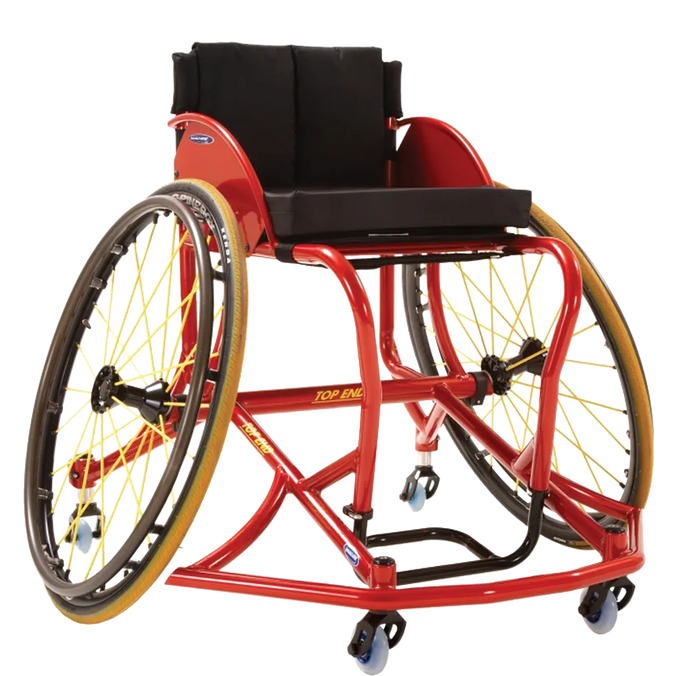

Top End Schulte 7000 Series BB Chair

Details

The all new Top End Schulte 7000 Series Basketball Chair is made of a lighter weight aluminum for an overall better feel. The 7000 aluminum frame is about two pounds lighter than the previously used 6061 aluminum, making the Schulte 7000 Series more comparable to titanium frames. This basketball chair also features the Nord-Lock bolt securing system for the axle receivers.

Benefits of 7000 Aluminum
Not only is this type of aluminum lighter than others, but it is also significantly stronger. The additional strength allows for a reduction in the wall thickness of the tubes which reduces weight of the chair. In addition, the rigidity and strength of the 7000 aluminum is further enhanced by Invacare Top End's sophisticated heat treating and powder coating process.

Nord-Lock Bolt Securing System
Axle receivers are locked into the frame with the Nord-Lock bolt securing system. This system minimizes axle play which makes the rear wheels more secure and solid, an important feature in a basketball chair. Nord-Lock bolts have been around since 1982 and they are highly effective in resisting loosening by vibrations and load.

Design Changes
In addition to the new aluminum and axle locking system, the Schulte 7000 Series has an updated design when compared to the Top End Paul Schulte Signature BB. The head tube utilizes precision components that maximize stiffness, reduce play and improve overall responsiveness of the casters. Also, the frame members sleek and curved design add a sharp look to the camber tubes, anti-tips and offensive wing.

The Top End Schulte 7000 Series Basketball Wheelchair is fast, light, strong and better than ever featuring 7000 series aluminum material, precision head-tube design and an axle securing system that improve performance to help you perform at your best.

Material: The big advantage of 7000 aluminum is that it’s 23% stronger than 6061 aluminum. This allows us to reduce the weight.

Design: New system makes player’s rear wheels secure and solid for a confident feel.

The Designer: Each Invacare Top End Schulte 7000 Series Basketball Wheelchair is custom built to each individual athlete’s specifications. This process is overseen by Paul Schulte himself, our Engineering Manager at Top End. Paul has been a member of the USA National Men’s Wheelchair Basketball Team for many years playing in multiple Paralympic Games and has held MVP titles both as a junior and in the men’s division of the NWBA. He knows what he wants in a basketball chair and now offers the same performance to you!

*20.5 pounds frame weight is based upon a completely assembled chair with standard rear wheels, upholstery and footrest

Product Highlights

Custom-built fixed frame in 7005 aluminum
Adjustable height fixed swivel anti-tip 59mm fifth wheel
Fixed back with fixed or adjustable height
Adjustable tension seat and back upholstery
Fixed camber: 15º,18º or 20º
High performance Sun® wheels: 24", 25", 26" or 700C
Four bend offensive wing
High pressure clincher tires
Precision fork caster system
72mm casters on front, 59mm casters on rear
Powder coat paint
Rear frame protector
250 lb. weight capacity with optional heavy duty upgrade for 350 lb. capacity

Specs

Seat Widths:	12" 13" 14" 15" 16" 17" 18" 19" 20" 21"
Product Weight:	21 lbs
Legrest Options:	Fixed
Seat to Floor Heights:	14.5" to 20.875"
Frame Type:	Rigid
Seat Depths:	12" 13" 14" 15" 16" 17" 18" 19"
Hemi Height Option:	Yes
Back Height:	8" 9" 10" 11" 12" 13" 14" 15" 16" 17" 18"
Angle-Adjustable Back:	No
Fold-down back for easy transport:	No
Reclining Back Option:	No
Rear Wheel Size:	24" 25" 26"
Camber Angle:	12° to 20°
Pneumatic (air-filled) tire option:	Yes
Quick-Release Axles:	Yes
One-Arm Drive Option:	No
Upholstery Options:	Yes
Armrest Options:	Fixed Height
Removable Legrests:	No
Upholstery Color:	Nylon, Black
Expedited Shipping Available:	Yes
Product Weight Range:	15 lbs to 20 lbs

Measuring Guide (please refer to image)

Seat Depth1
Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
Back Height2
Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
Rear Seat to Floor3
Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
Hanger Angle4
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
Seat Width5
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
Wheel Camber6
Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
Front Seat to Floor7
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
Footrest Width8
Measure from the inside of each legrest tubing the distance or desired distance between legrests.
Center of Gravity9
Measure from the front of the seat back post to the center of the rear axel.
Seat to Footrest Length10
Measure from the edge of the seat upholstery to the top rear of the footrest.
Backrest Angle11
Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
