PressureGuard CFT® Bariatric Air Mattress

By Span America

SKU# CF804-29 / Item ID # 35469

Ships by: Fri, May 31st

As low as $1,870.00
Add-on Services (0 Selected)  Select Show Less
0% APR available for up to 18 Months*
No credit required. Pay over time. No late fees.
  • FREE Shipping over $50
  • Product Specialist
  • Lifetime Phone Support
  • Financing Options

Need Help?

Talk to one of our Experts!

Span America pressureguard CFT bariatric mattress uses patented constant force technology to automatically adjust the mattress's network of interconnected air cylinders and elasticized reservoirs to the appropriate, therapeutic levels for each patient regardless of their weight or position on the surface. PressureGuard CFT heavy duty mattress provides a clinically effective solution for prevention and treatment.

Cover: The bacteriostatic top fabric is fire resistant, fluidproof, tear resistant, cleanable, and replaceable. The pleated design allows full integration with the mattress’s Geo-Matt style shear-relieving surface while minimizing hammocking.

Foam Topper: The exclusive Geo-Matt® style foam topper is a high density, medical grade foam. The unique geometric design consists of over 800 individual cells, each of which acts individually to redistribute pressure, to reduce heat and moisture buildup on the skin, and to reduce shear to underlying tissues. This foam topper is 2" in height and includes the unique Heel Slope™ feature, designed to further reduce pressure for the sensitive heel area.

Safety Edge™ Bolsters: The Safety Edge™ consists of a firm 2-part foam bolster whose inner edge contours under pressure to direct the patient towards the center of the mattress. This adds to patient stability in sitting and lying down, and helps prevent falls and entrapment between the siderail and the mattress.

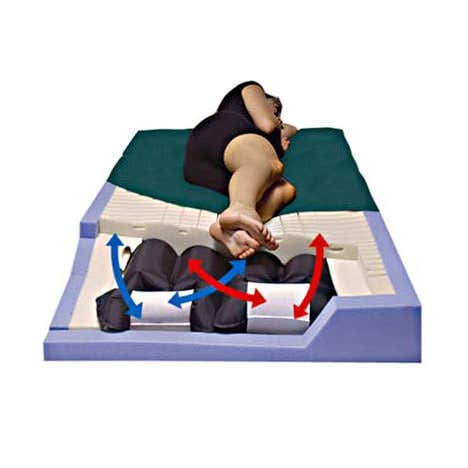

Air Cylinders and Reservoirs: Four individual, interconnected air cylinders and two elasticized reservoirs that automatically customize pressure distribution to the individual patient. (Note: Bariatric models of 42", 48", and 54" widths have 6-8 cylinders, and 3-4reservoirs.) Air flows among the cylinders in response to the weight of the body to equalize pressure throughout the system, provide a constant, uniform distribution of safe pressures beneath the patient, and prevent bottoming out.

Maintenance Access Ports: Easy access ports to use with air system renewal kit. Assures proper air pressures are maintained.

Primary Use

  • Treatment of any stage pressure ulcer
  • Prevention of skin breakdown in the high-risk patient

Patient Indications

  • Any stage ulcer
  • Repositions infrequently
  • History of pressure ulcer(s)
  • Poorly padded bony prominences
  • Can be positioned off of ulcer in at least 2 positions
  • High risk for skin breakdown, or severely compromised

Key Advantages

  • No controls to adjust
  • No reliance on power source
  • Medicare covered (non-powered Group II)
  • Proven for both ulcer healing and prevention
  • Outperforms powered systems for wound healing
  • PressureGuard design: stability, safety, anti-shearing


  • Weight limit 750 lbs.
  • Comes with self-adjusting air therapy
  • Requires no set-up, shipped patient-ready, and is simple to maintain
  • Uses patented Constant Force Technology to automatically adjust the mattress

Certified Compliance: Span offers Fire Barrier Versions (FBV) of all Geo-Mattress® therapeutic foam and PressureGuard® air therapy surfaces. These versions are identified with a “-29” suffix, indicating they are equipped with an inner fire barrier sleeve. They have been certified to meet the new federal standard, as well as existing standards Cal TB 603 and 129, NFPA Life Safety Code 101, ASTM E 1590, 16 CFR 1632, and Boston IX-11.

Product Highlights
  • Comes with self-adjusting air therapy
  • Requires no set-up, shipped patient-ready, and is simple to maintain
  • Uses patented Constant Force Technology to automatically adjust the mattress
Medicare approved: E0373 (Group II)
Length: 80", 84"
Width: 42", 48", 54"
Height: 7"
Weight capacity: 750 lbs.
Mattress weight: 21 lbs.
Brochure (110.00 kB)
Algorithm (181.05 kB)
Matrix (178.29 kB)
60 Days

Please refer to our return policy or contact our experts if you need more clarity
