X-9 Recling Back Electric Wheelchair - Blue (OPEN BOX)

Battery and Charger

• X-9 comes in two battery options, a 288WH (24 volt, 12AH) lithium-ion or a 480WH (24 volt, 20AH) lithium-ion.
• The 12AH battery is airline and cruise approved and delivers a range up to 13 mile (20 km).
• The 20AH battery is not airline or cruise approved and delivers a range up to 19 mile (30 km). The battery charging time is for each battery is 6 to 8 hours.
• The X-9 battery can be charged with a regular home outlet.
• The charging details for each battery (12AH or 20AH) are AC 100 – 240 Volt, 50 Hertz, at 1.5 – 5 amperes.
• The X-9 comes with a standard 24V 2A charger in the box.
• For quicker charging times, we recommend the 24V 3A charger for the long range 20AH battery. The 24V 3 charger is sold separately.

Motors

• The X-9 auto reclining chairs comes with two 250W engines. Each motor works independently, and they provide a total motor power of 500W.
• The motor torque is 1.1Nm giving these motors the power to climb angles up to 6 degrees.

Travel Friendly

• The X-9 is a foldable travel wheelchair. The 12AH (288) lithium-ion battery is travel approved by most major airlines and cruise lines. Before travelling by airline or cruise, please contact the airline or cruise line to confirm their travel battery regulations.

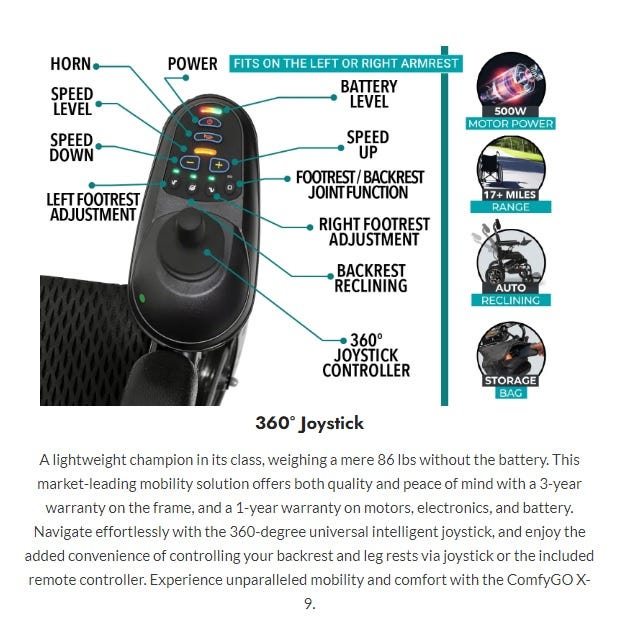

Controller (Joystick)

• The X-9 chair is equipped with a weather resistant 360-degree joystick controller.
• The controller contains the power on/off button, the speed selection buttons, the horn button, the battery level display, backrest reclining selection button, lifting legrests selection buttons and the 360-degree joystick controller.
• If your X-9 supports the auto reclining feature, your controller will also include the recline and upright buttons.

Remote Controller

• The X-9 comes with a remote controller. The remote control allows you to maneuver the chair, adjust the speed, honk the horn, and recline the chair (if applicable). The remote control works at distances up 30 feet.

Speed

• The X-9 has five speed selections and a limited top speed of 6 km/h (4 mph).
• The five speed selections will deliver 20%, 40%, 60%, 80%, or 100% of the maximum speed with speed one being 20% of maximum speed and speed five being 100% of maximum speed.

Range

• The highly efficient lithium-ion battery provides plenty of range.
• The 12AH battery delivers up to 13 miles / 20 km.
• The 20AH battery delivers up to 19 miles / 30 km.
• Driving habits, temperature, weather, loading weight, road environments, and other factors may affect the range

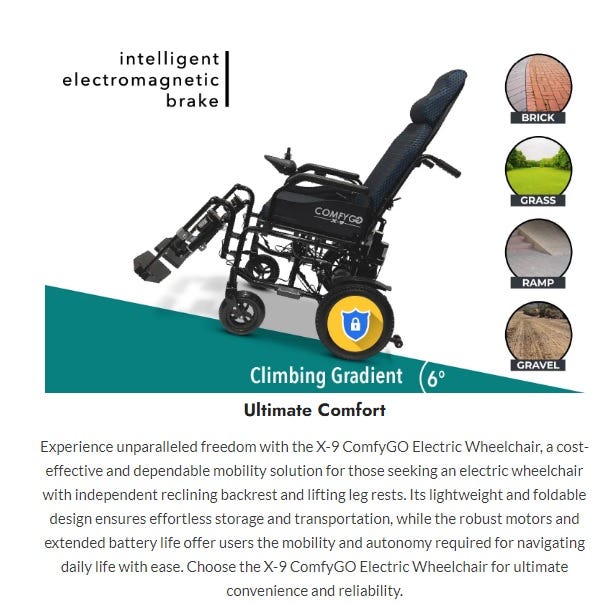

Intelligent Electromagnetic Brakes

• Enjoy a safe and smooth ride with our electric wheelchair featuring intelligent electromagnetic brakes built into the motors.
• Intelligent Electromagnetic Brakes provide several benefits for wheelchairs, including improved safety, smoother braking, and reduced wear and tear on the wheelchair's components. Unlike traditional braking systems, electromagnetic brakes are highly responsive and can be controlled with precision, allowing for a safer and more comfortable ride. They also require less maintenance and have a longer lifespan compared to other braking systems.
• Additionally, electromagnetic brakes can help prevent the wheelchair from rolling away when parked on a slope or incline, providing greater peace of mind for the user.

Automatic Reclining Backrest & Lifting Leg Rests

• The X-9 is available with an optional auto reclining feature. At its full upright position, there is a 10° angle on the backrest. By using the joystick controller or remote control, the backrest will recline up to 55° from the upright position.
• The reclining feature of the X-9 provides additional comfort to the user and should only be used when the wheelchair is stationary. Do not use the recline feature while the chair is in motion as this could lead to tipping and severe injuries.
• Featuring independent control of the backrest and right/left leg rests, this wheelchair provides a customized experience for every user.

Cushion & Backrest

• Experience added comfort and easy maintenance with the breathable cushion and backrest of our electric wheelchair.
• The X-9 electric wheelchair is designed for maximum comfort.

Frame

• Experience maximum durability and strength with the X-9 series of electric wheelchair, which features an aircraft-grade aluminum alloy frame.
• This high-quality material offers superior toughness and corrosion resistance, ensuring that your electric wheelchair can withstand the rigors of daily use and provide long-lasting performance.
