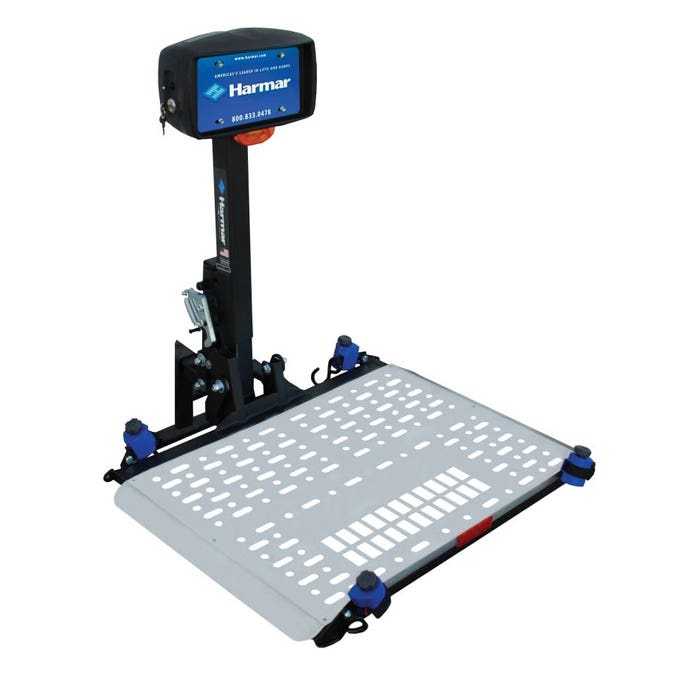

AL500 Universal Powerchair Lift

By Harmar

SKU# AL500 / Item ID # 20697

Ships by: Wed, May 29th

Add-on Services (0 Selected)  Select Show Less
0% APR available for up to 18 Months*
No credit required. Pay over time. No late fees.
  • FREE Shipping over $50
  • Product Specialist
  • Lifetime Phone Support
  • Financing Options

Need Help?

Talk to one of our Experts!

Easy, Affordable Accessibility for Any Vehicle

Introducing the easy, affordable way to transport any wheelchair or scooter into your vehicle. The AL500 gives you more freedom and accessibility in your everyday life, without the need to purchase a wheelchair van. Install the lift outside of any vehicle with a hitch, then connect to power with the choice of a hardwire kit or external battery pack. Simple enough that virtually anyone can use, the AL500 can be operated with a simple toggle switch.

No Vehicle Modifications Required- Start Transporting Your Wheelchair Immediately!

Designed for versatility, automatic retractors snugly secure almost any style of wheelchair or power chair to the platform. No extensive modifications are required– the lift comes with a wide range of hitch adapters to perfectly fit your vehicle. For a lift that weighs only 75lbs total, it can support an impressive 350lbs weight capacity.

Extra Add-Ons that Make All the Difference

Extra features make all the difference in day-to-day accessibility. Easily swing-away the lift to access your vehicle’s trunk within seconds, and keep it secured with a motor cover and key lock. A built-in license plate holder and light keep your license plate clearly visible at all times.

Product Highlights
  • 4 self-tensioning Q'straint retractors
  • Designed to carry a wide range of power wheelchairs
  • No wheelchair modifications
  • Motor cover with Key lock, toggle switch, license plate holder and light
  • Manual override
  • Power Lifting; Automatic Folding when unoccupied
  • AL123 Class III Hitch adapter & AL107 Hitch Post, upgrades available
  AL500 AL500HD
Weight Capacity: 350 lbs 400 lbs
Weigth: 75 lbs 77 lbs
Hitch Types: Class II Hitch
Class III Hitch
Class II Hitch
Class III Hitch
Hitch Height: 5" to 18"  5" to 18"
Power Source: Hardwired or Battery Hardwired or Battery
Platform Size - Length: 39" 39"
Platform Size - Width: 26" 26"
Accommodates: Power Wheelchairs Power Wheelchairs
Type of Lift: Outside Lift Outside Lift


**Please verify TONGUE WEIGHT CAPACITY for your vehicle with the vehicle manufacturer to ensure safe application

Brochure (2.11 MB)
Manual (36.79 MB)
Transferrable. Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

Please refer to our return policy or contact our experts if you need more clarity
